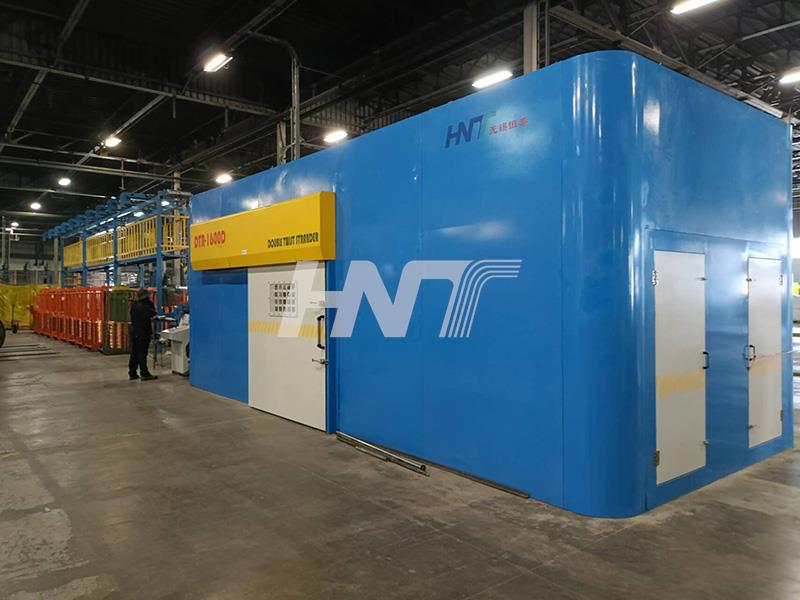

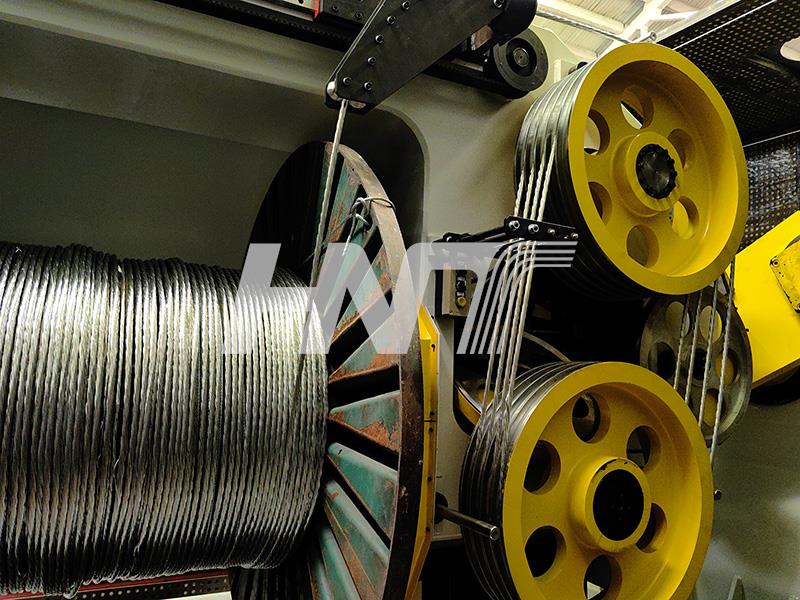

Double Twist Stranding Machine

Double Twist Stranding | Laying-Up Machine


1250 Double Twisting Machine:

1. Stranding cross-section: 9～50mm² CU/AL；

2. Single diameter range of stranded copper and aluminum wire: φ1～φ2.6mm.

3. Lay length range: 30~350mm, infinitely adjustable.

4. Stranding direction: "S" direction (left spiral) or "Z" direction (right spiral) can be used.

5. Max. Speed: 0～500r/min, infinitely adjustable;

1600 Double Twisting Machine:

1. Inlet copper and aluminum wire wire: Φ1.0-3.6 mm/7-19 core；

2. Inlet insulation wire：Φ2.0-10.0mm/2-5 core

3. Stranding wire diameter：Φ30mm MAX

4. Stranding cross section：10.0mm²-120mm² CU/AL

5. Stranding insulation wire diameter：Φ15mm MAX；-Stranding pitch：15-550mm；

6. Max speed：500rpm/min.（1000TPM);

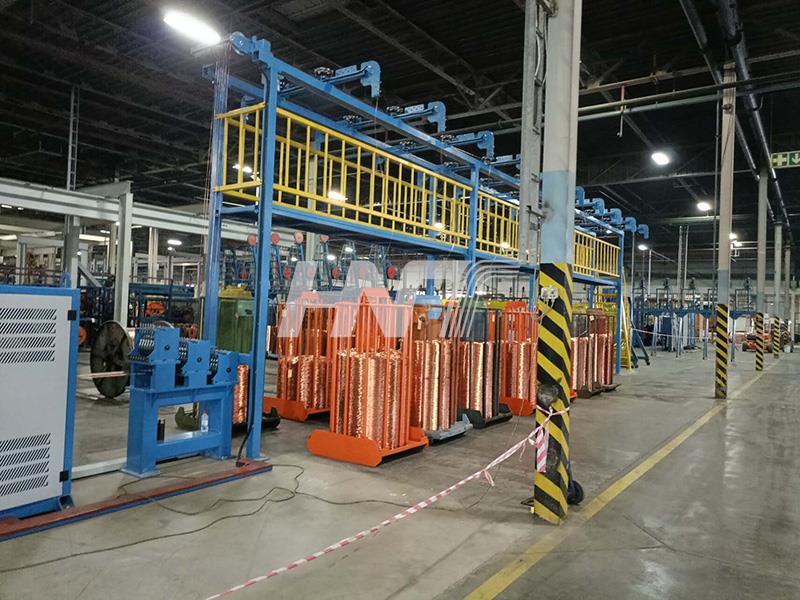

Layout Of Double-Twisting Line:
