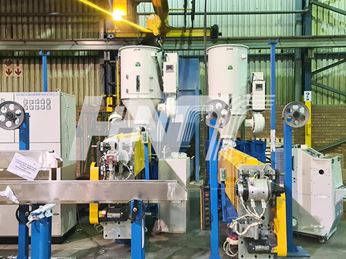

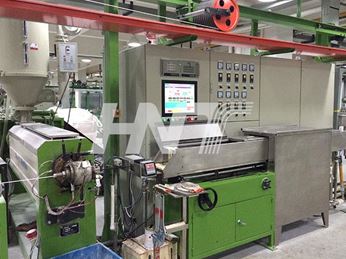

PV Cable Production Line

09048144398
Application:

The PV cable extrusion line is ideal for the extrusion of plastic insulated PV cables. These plastics include PE, XLPE, etc.
Technical Information:

Item
PV cable extrusion machine
Machine Type
Φ70
Φ90
Φ80 +Φ90
Screw Diameter
Φ70mm
Φ90mm
Φ80mm + Φ90mm
L/D Ratio
25:1
25:1
25:1
Screw Speed
110rpm
110rpm
100rpm
Extruder Power
37kW
75kW
55kW + 75kW
Extrusion Capacity
140kg/hr
350kg/hr
350kg/hr
Finished Wire Outer Dia
Φ1-7mm
Φ1-7mm
Φ1-20mm
Control
Touch screen + PLC
Line Speed
300m/min (max)
300m/min (max)
200m/min (max)
Extrusion head
U7 fixed centering cross head
U7 fixed centering cross head
X20 adjustable head
Pay-off
Active pay off or tension pay off
Cooling
Water immersion cooling
Capstan
Double-wheel sealed capstan
Double wheel or crawler capstan
Accumulator
Horizontal / 12m
Horizontal / 12m
Horizontal / 12m
Take-up
Twin screw take-up machine
Diameter measuring instrument
Domestic or imported
Spark tester
Domestic or imported
Wire diameter control precision
±0.02mm
