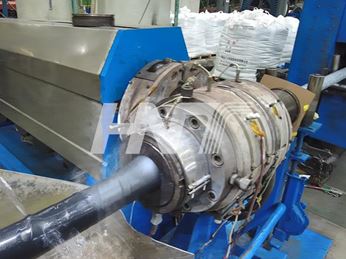

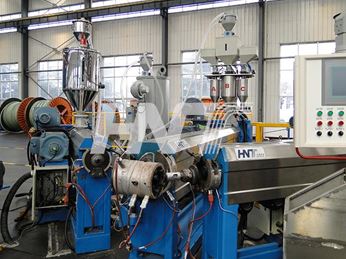

One-step Silane Crosslink Extrusion Line


Cable-extruder
extruder
Application:
Use for copper wire, aluminum wire insulation extrude, produce  1KV-10KV Crosslinking cable and crosslinking aerialine,
Material: PVC,PE,XLPE
Technical Parameters:

Voltage

1KV-10KV Crosslinking cable

1KV-10KV Crosslinking aerialline

Conductor Material

 Aluminum, Copper

 Up to IEC 228 Standard

Corss Sectional Area of Conductor

10-630mm²

Conductor Diameter

4.0-40.0mm

Cable Diameter

9.5-42.0mm

Weight of Cable

Max. 7.0kg/m


Wall thickness

Inner shied:0.4-0.8mm

Insulation: 0.8-3.5mm

Color Skin: 0.1-0.5mm

Line Speed Max. 80m/min

Capacity of Extrude 65/25D

PE: Max. 120kg/h

120/30D

PE:Max.450kg/h

Middle Voltage Cable


Inner Shied Material

Semi-conductive PE(Borealis), SIOPLAS(AEI)

Insulation Material

PE,2100TN00,218W, 18D..

Liquid Silane

SILIX, SILMIX316,301

Carbon black master batch: silix-c401

Low Voltage Cable


Insulation Material

PE, 2100TN00,218W, 18D...

Liquid Silane

SILIX, SILMIX316,301

Carbon black master batch: SILIX-C401

Color Skin

PE,PVC or SIOPLAS (AEI), Color Masterbatch
