Hanging Pintle Portal type Take-up

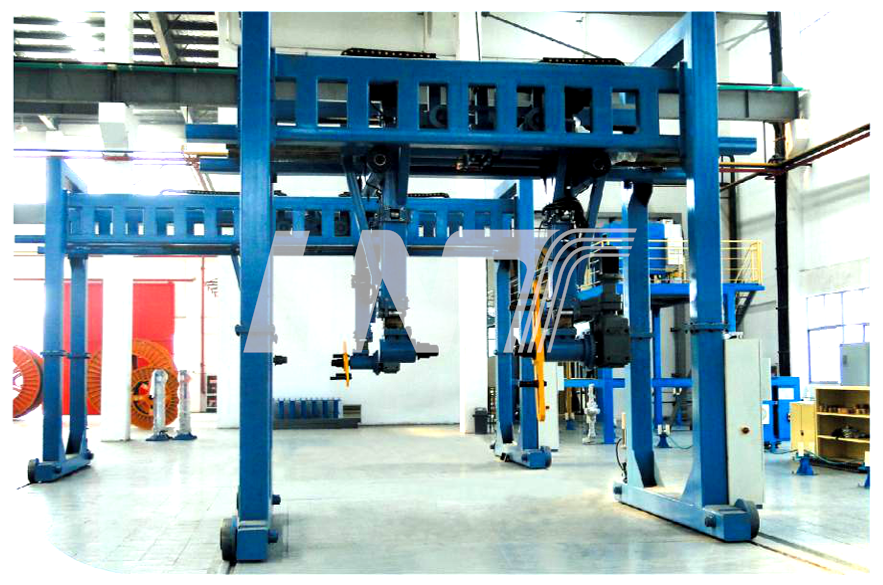

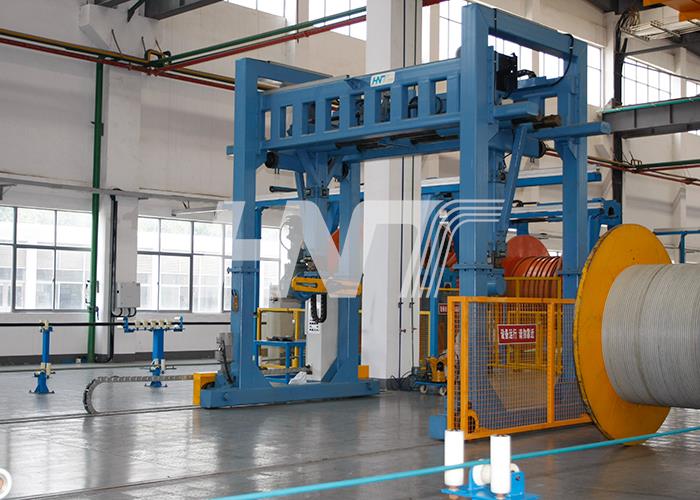

The traversing take-up is of the hanging pintle portal design. The telescopic lifting arms are narrow, allowing good access to the reel when fastening the cable.

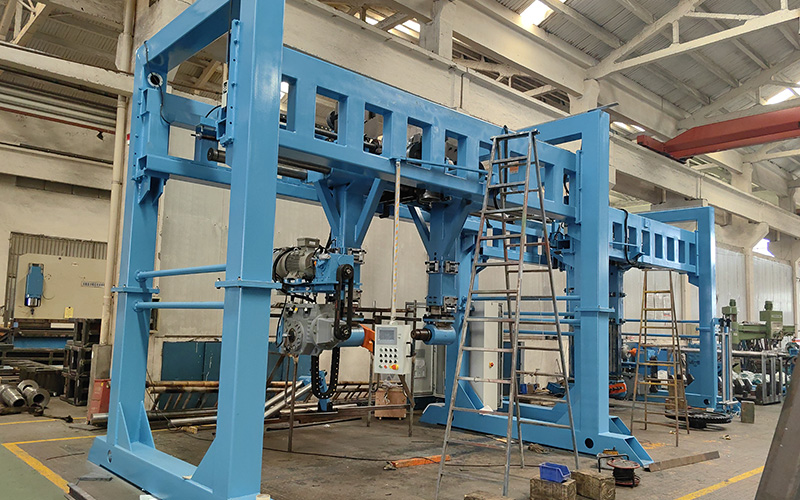

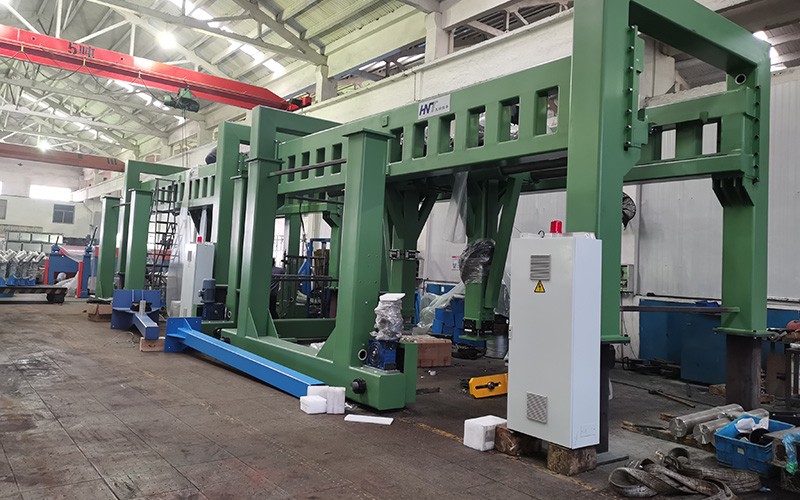

The take-up has two main components: the portal frame and the traversing carriage. The telescopic lifting arms are suspended from the moving carriage, which is wheel mounted on the beams. All pintles movements, up-down and in-out, are motorized.

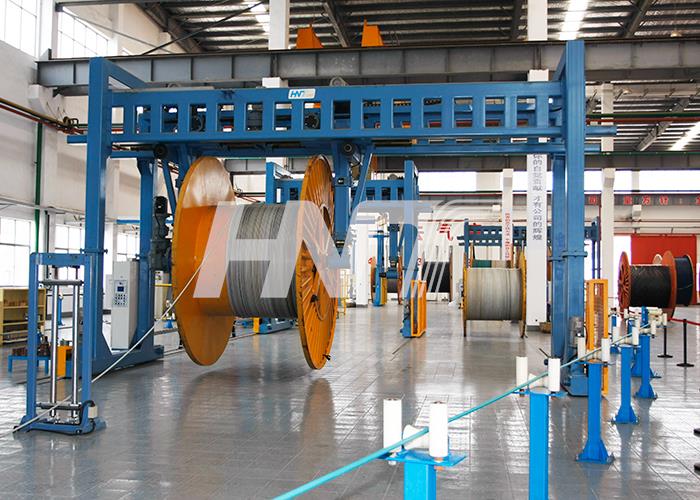

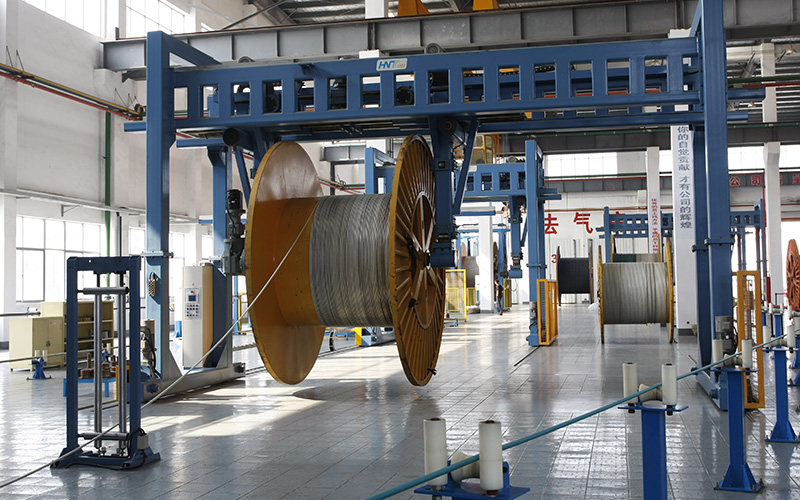

The carriage traverses during operation to maintain a straight centerline of the cable entering the reel. The traversing pitch and turning points can be set by hanging control panel push-buttons.

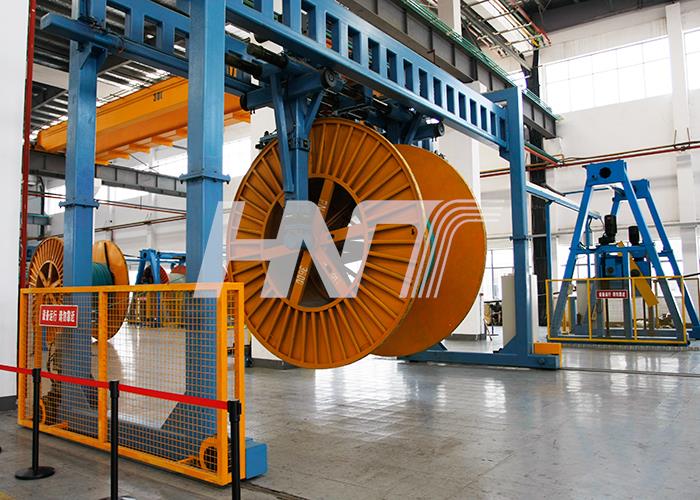

The reel is dog-pin driven by a Vector controlled AC-motor over a 2-step gearbox. The main motor can be run with constant torque or controlled by either dancer or accumulator. The motor has forced ventilation and is equipped with an electromagnetic brake, working as holding brake or an emergency stop brake.
One set of pintles is included in the basic machine.
The guide rollers are suspended from the portal frame. The rollers are easily adjustable for different cable diameters.
All functions such as reel rotation, traversing, pintles movements and auto reel handling are activated and controlled from the hanging control panel.
Traversing of take-up

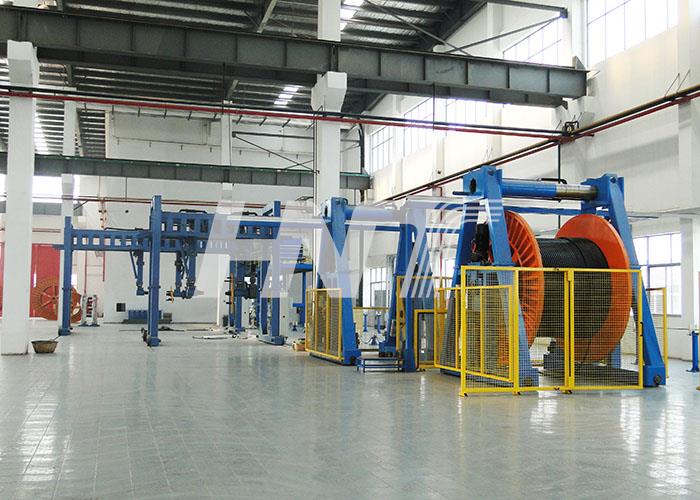

The beams of the take-up are long enough to allow the reels to be changed by the side of the production line. Two take-ups positioned behind each other is often the best solution for continuous production.
Max. Flange Dia.(mm)
Min Flange Dia.(mm)
Min Overall Width(mm)
Max. Overall Width(mm)
Min. Barrel Dia.(mm)
Min. Wire Dia. (mm)
Max. Wire Dia.(mm)
Max. Rotation Speed(RPM)
Max. Reel Weight(KG)
