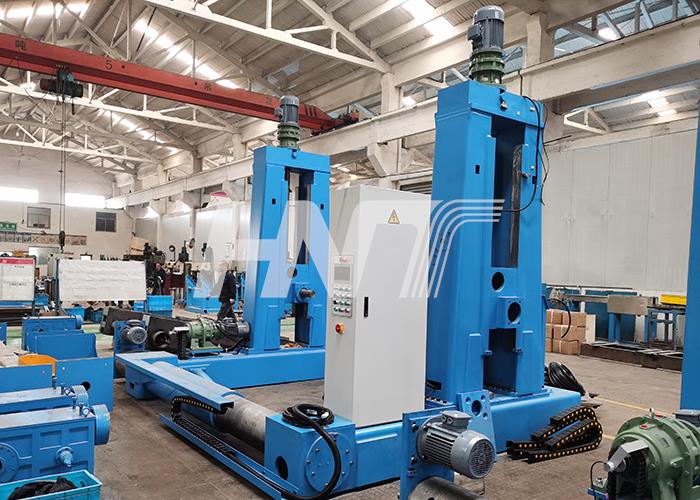

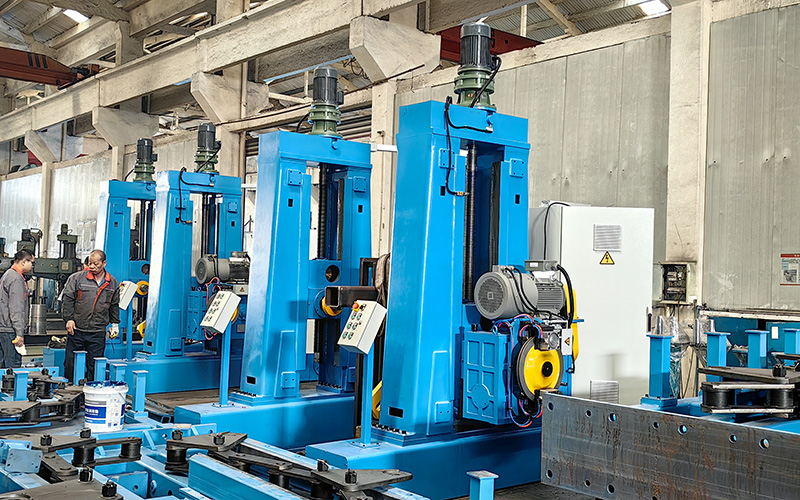

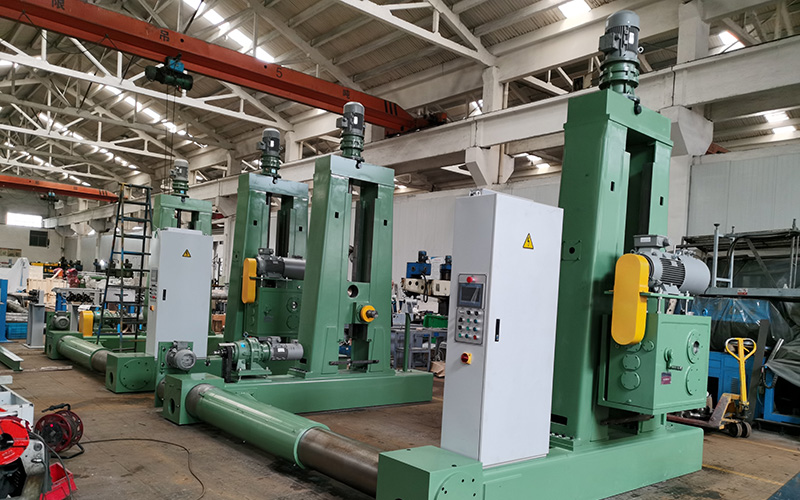

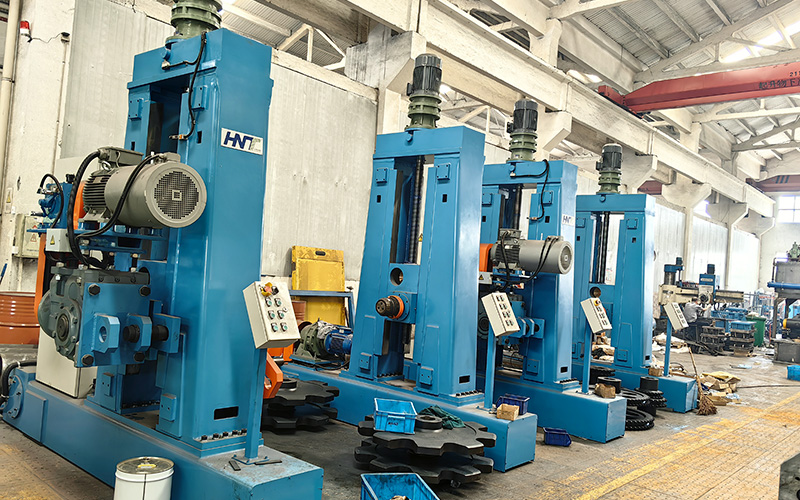

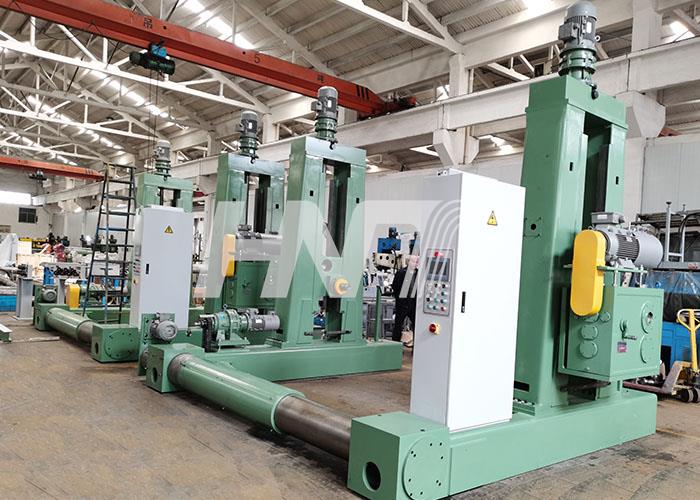

Lower Beam Type Take Up (Payoff)

Lower Beam Type Take Up (Payoff):

Loading and unloading method is a portal movable structure, the pintle of the reel are driven by two motors via a cycloidal pinwheel reducer, each of the pintle can be lifted separately or simultaneously. It is equipped with mechanical protection and electrical protection devices and with accessories pintle design to meets the installation of different specifications of the bobbin; Bobbin clamping is realized by the motor, and it is equipped with mechanical protection and electrical protection device. Loading and unloading of the bobbin is very convenient.

The Take-up is the AC motor drive the gearbox to drive bobbin, and the gearbox is infinitely variable; Siemens 200 PLC+ imported Siemens governor is used to control the motor operation. The traverse pitch and bobbin information can be input in the control panel,PLC control with coil diameter calculation function can automatically control the tension and reverse direction. The traverse is driven by the motor to reduce the gear box and the guide wheel, to control the pitch of the traverse, and the gear box is directly connected to the traverse shaft;

2 method of the take-up control: torque control and speed control which can be manually switched.

Brake: with pneumatic butterfly brake, solenoid valve control.

Technical parameters

Reel Diameter1250/25001600/32001800/36002000/42002000/45002500/5000
Max Flange Diameter (mm)250032003600420045005000
Min Flange Diameter (mm)125016001800200020002500
Min Overall Width (mm)90011801400190019001900
Max Overall Width (mm)190021202300240024002500
Min Barrel Diameter (mm)5008002500280028003000
Bore (mm)80(100-125)80(100-125)200200200200
Min Wire Diameter (mm)7820303040
Max Wire Diameter (mm)70120140160160180
Max Rotation Speed (RPM)7/17/377/17/376/12/226/12/226/12/226/12/22
Traverse Range (mm)8-909-12020-14030-16030-16040-180
Max Reel Weight (kg)120001800025000300003500040000
