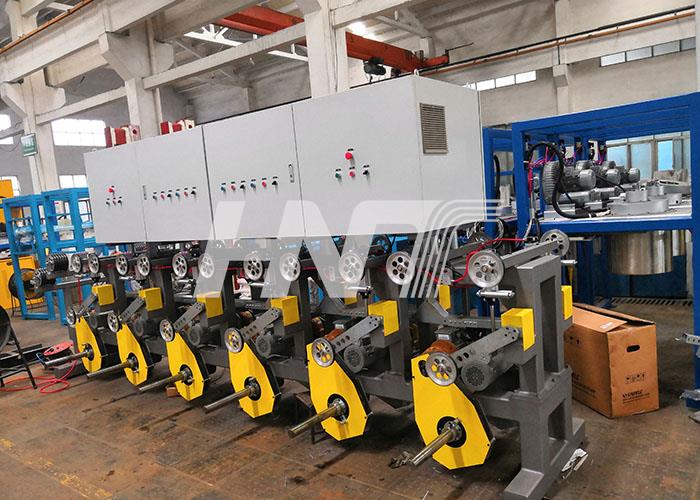

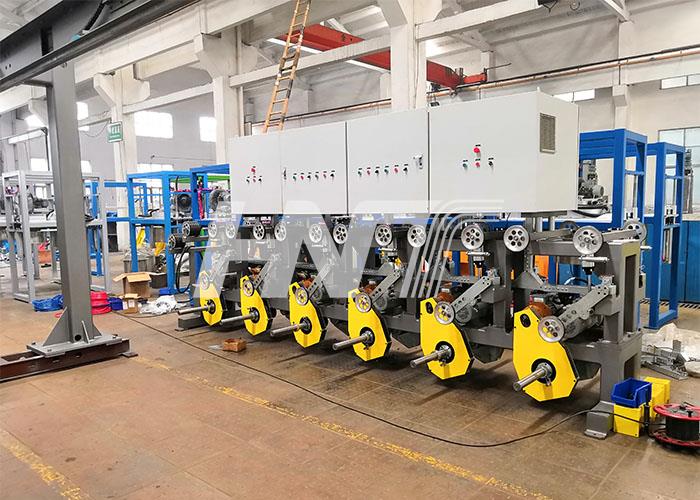

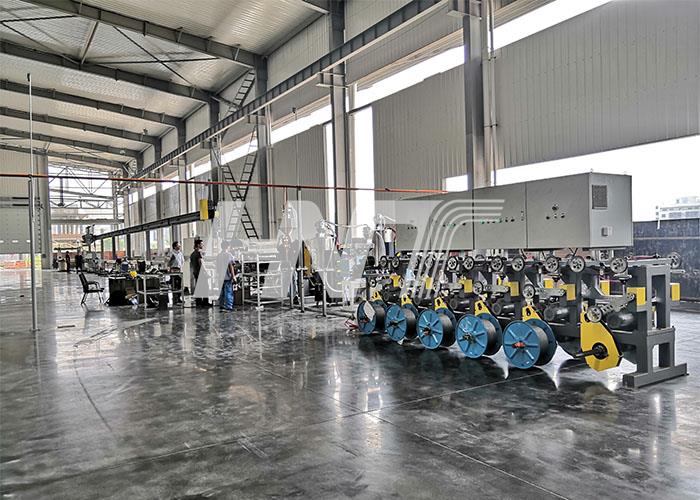

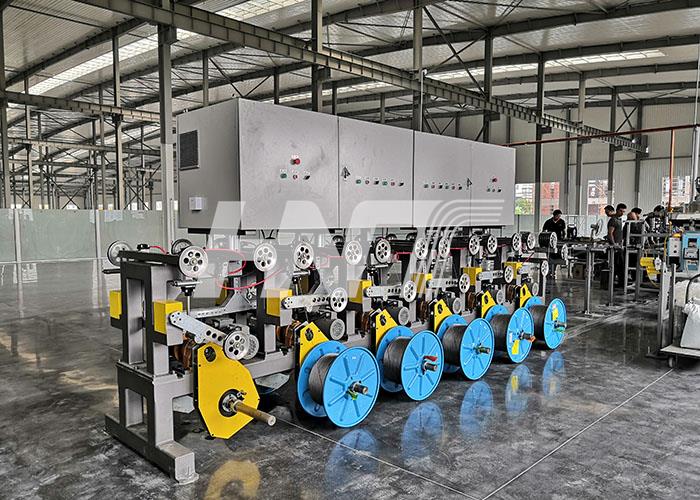

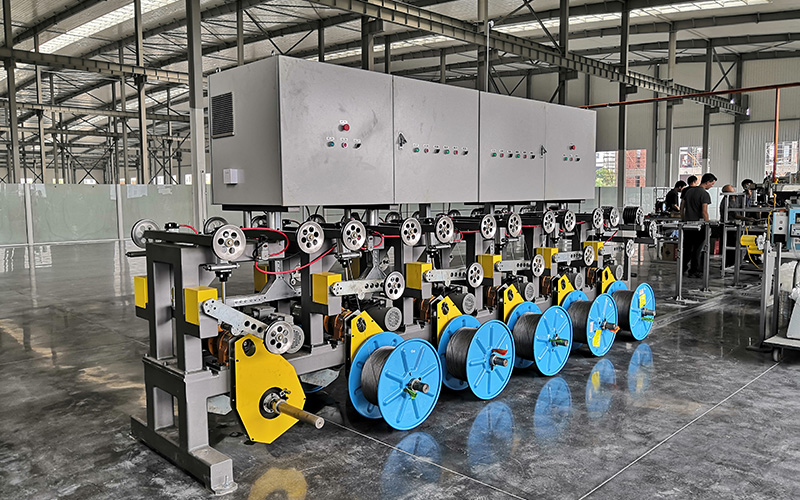

Multi-head Payoff 500/630

Multi-head Payoff 500/630

1. Motor-Driven Payoff:
2. Single Shaft cantilever type
3. Shaft supported by oil-pressure, mechanical arm, travel controlled by motor.
4. Motor-driven payoff system.
5. Application in wire manufacturer or separate winding.


Technical Parameter:

Specification

PND500/630

Bobbin Size (mm)

500/630

Max. Dia. of Flange (mm)

500

Min. Dia. of Flange (mm)

630

Center Hole (mm)

φ75

Range of Wire Diameter (mm)

φ1.0-5.0

Rotate Speed (rpm)

7/17/37

Motor Power (kW)

5.5

Max. Reel Weight (kg)

600
