HV, EHV CCV Line Accumulator

HV, EHV CCV Line Accumulator

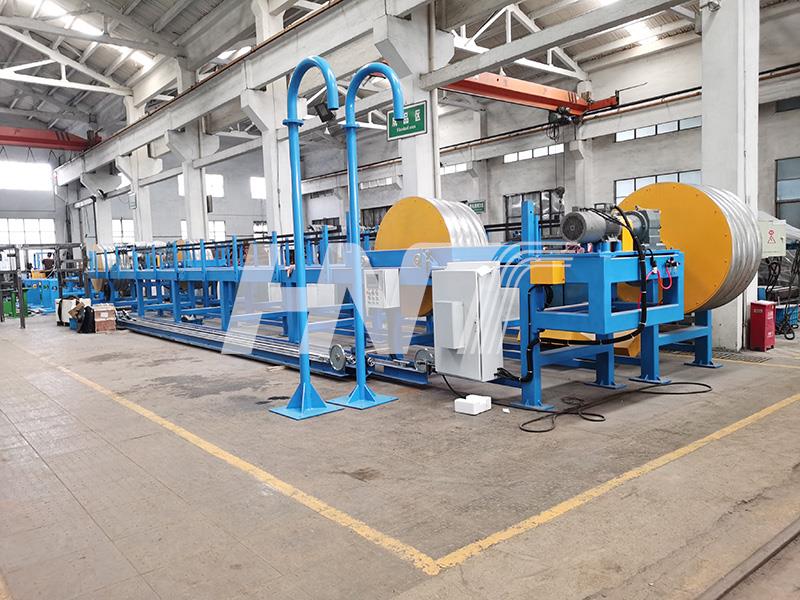

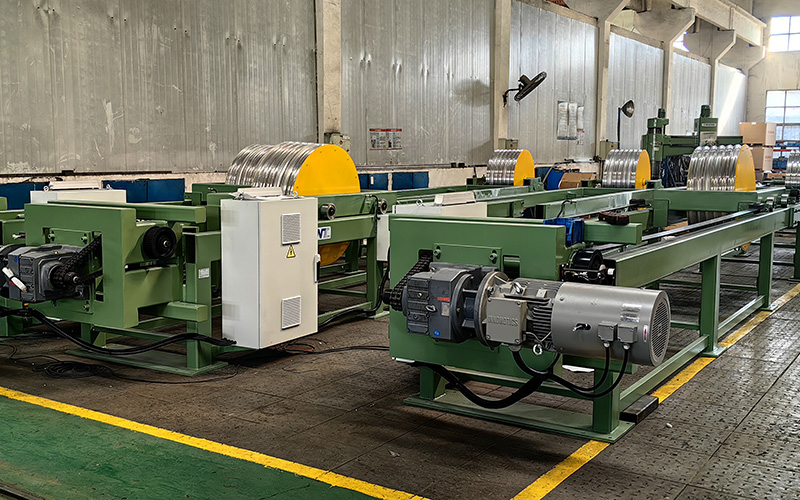

This equipment is a horizontal moveable wire storage device.

The purpose of the catenary production line is to continuously produce when wire drums change, avoid stopping, and ensure product quality. It is a cross-linked One of the necessary equipment on the production line.

Technical Parameter:

No.Main TechnicalData
1Storage wheel diameter2000 mm
2Maximum conductor diameter1000 mm²
3Storage capacity120 m
4Number of moving wheels4
5Installation length15Meter
6Maximum design line speedAluminum alloy
7The linear speed is infinitely variable and adjusted by a variable25 m/min
8frequency drive and an AC motor.1-25m/min

 Machine Video:
