TP600 Coiling Wrapping Machine

Ccoiling-wrapping-machine
Video Of Machine Working Process:

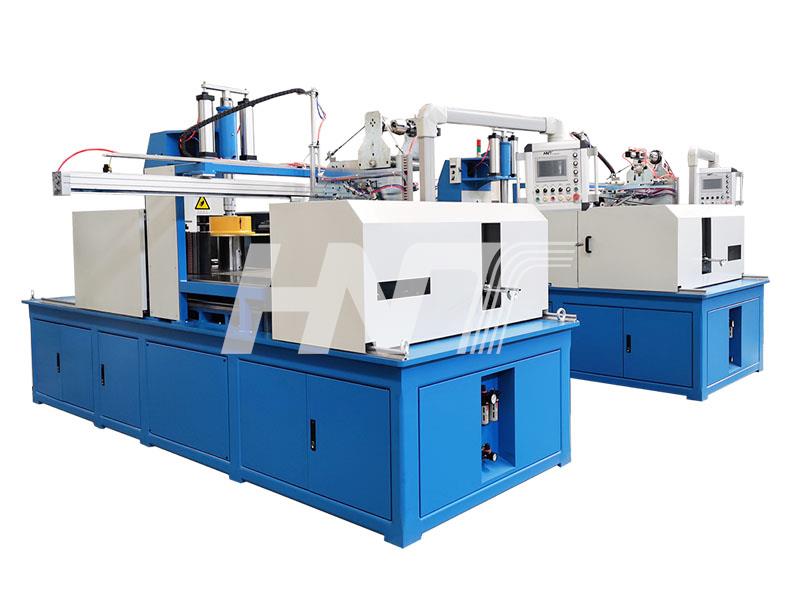

TP600 Cable Coiling & Wrapping Machine
Application: Used for making coiling of wire or cable diameter up to 50 mm

Technical parameters

  • Cable diameter: ф10mm²ф50mm²

  • Line speed:120m/min

  • Coil size: H:80-240m   OD:300-600mm  ID:180-320mm

  • Bobbin size: ф800/1600

  • Power capacity: 68kw

  • Direction:depend on custome

Characteristic

  • wire feed by payoff or direct connect to extruder.

  • Coil productive output is 4 time than by manual (take 200m coil for example).

  • After coil, can be connected to packing by automatic Poly film wrapping machine and marked.

  • If wrapping after coiling, the productive output is 7 time than manual.

  • This machine use servo motor flat cable system. good for looking.

  • Use touch screen type man-machine operation panel. easy to operate.

  • Microcomputer can save 99 kinds different coil size, when you change production, just read the data saved to produce, no need to set the data again.

  • This machine has automatic error detection function, when fault it will alarm.
