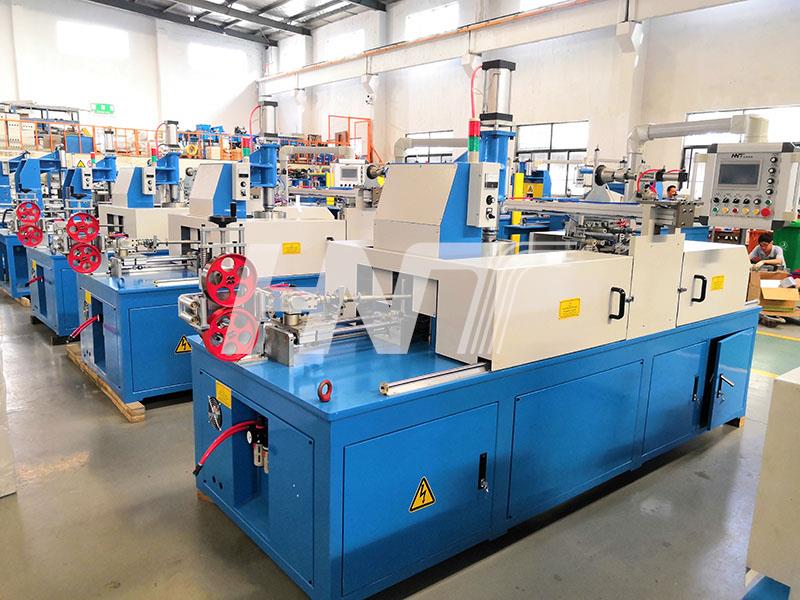

Automatic Wire Coiling Machine

Automatic Wire Coiling Machine:

1. PLC & HMI control program are used for automatic operation.

2. Wire will be coiled and packaged one by one, production with high speed.

3. It has auto adjust type coil-holding arm, without manual adjustments.
4. Parameters can be set on the control program with English.

5. With auto labeling machine, which do not need label by manual, more safe and convenience.

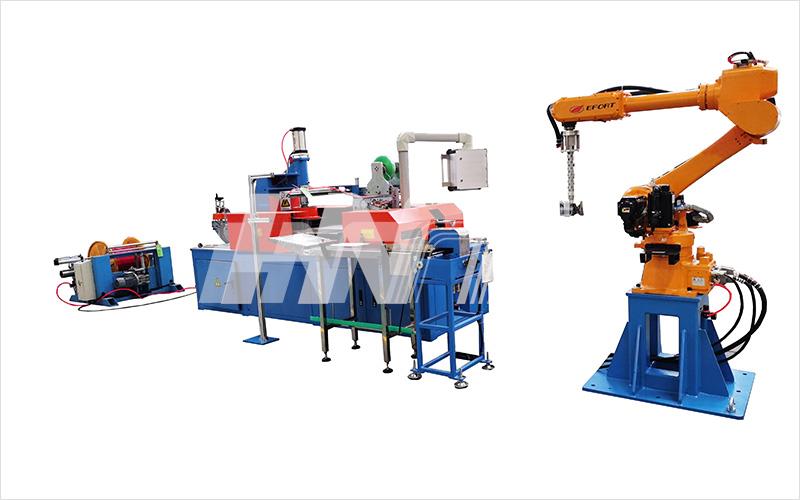

6. Can connect with auto stacking system & auto pallet stacking system.

7. When problem come out, the machine can auto detect the mistaked, and send message to warn the operator.
8. Cable coil OD and coil cutting length can be adjustable according to the setting parameter.
9. Cable inner Dia. can be changed according required.

10. Film Wrapping Tension can be changed as setting.

11. Cable Coil Wrapping Film material PP/PE/PVC/stretch film....

Technical parameter:

Model

Coil Height (mm)

Outer Diameter (mm)

Inner Diameter (mm)

Wire Diameter (mm)

Rotating Speed (RPM)

C0836

40 - 80

180 - 360

120 - 200

0.8 - 6

1000

C1246

50 - 100

200 - 460

140 - 220

0.8 - 6

800

C1860

60 - 180

20 - 600

180 - 250

5 - 15

200

C2060

60 - 200

220 - 600

180 - 250

5 - 15

150

C2480

80 - 240

300 - 800

250 - 320

10 - 25

100
