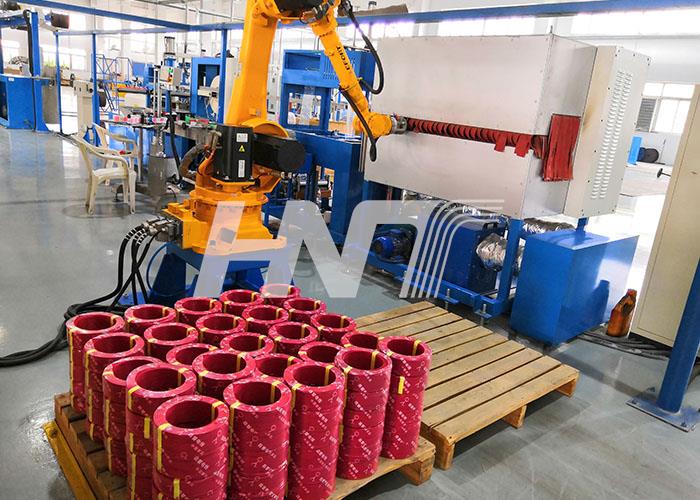

Cable Coiling Strapping Heat Shrinking Line with Robot

Wire_Coil_Packing_Line

Technical Informaiton:

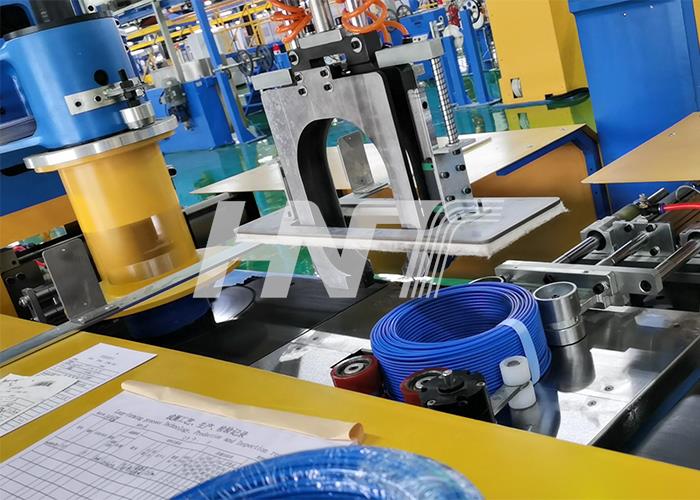

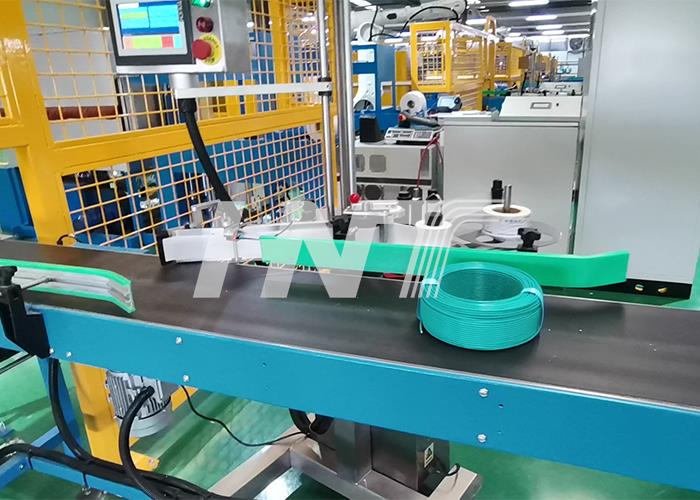

1. Cable Coil Hollow Heat Shrink Packing Line
2. HNT 240 is mainaly used for the coiling and binding process of electric wires, it makes the finished coil tightly and goes to the next process easily.
3. Controlled by PLC and touch screen, easy to operate.
4. Adopt servo motor flat  cable s ystem, the appearance of finished coil is good.
5. 99 different wire size can be reserved in the PLC, when change the products size, just to select size of wire on touch screen it can produce  immediately without inputting it again.
6. Binding tension is adjustable according to product characteristics.
7. Machine with automatic fault detecting system, which will alart when there is a problem.
Technical Information:

Wire  Section

1.5-6mm²

Production Speed

200m/min

Outer Dia. Of Coils

φ100-φ300mm

Inner Dia. Of Coils

φ180-φ250mm

Height Of Coils

50-100mm

Material Of Tie

PP

Binding Points

Binding

Packing Method

Hollow heat shrinkable

Power Supply

AC380V,3PHASE,50Hz

Cable Extrusion Line with Coiling & Hollow Packing Line
