Description:

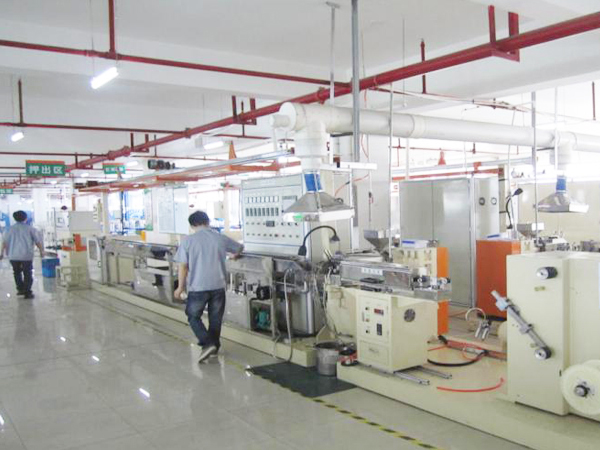

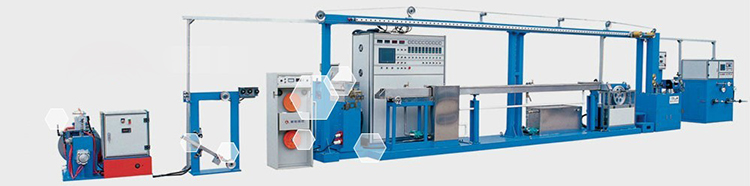

High Temperature Extrusion Line, set temperature up to 400 degrees.
This Teflon extrusion line is suitable for insulated extrusion of fluorine plastics, such as FEP, FPA, ETFE, etc.
Technical Information:
| Item | High Temperature Plastic Extrusion Line | ||||||
| Machine Type | Φ20 | Φ25 | Φ30 | Φ40 | Φ50 | Φ60 | |
| Screw Diameter (mm) | Φ20 | Φ25 | Φ30 | Φ40 | Φ50 | Φ60 | |
| L/D Ratio | 25:1 | 25:1 | 25:1 | 25:1 | 25:1 | 25:1 | |
| Line Speed (m/min) | 10-150 | 10-150 | 10-180 | 10-180 | 10-200 | 10-200 | |
| Extruder Power (kW) | 3.7 | 5.5 | 7.5 | 11.5 | 18.5 | 22 | |
| Extrusion Capacity (kg/hr) | 10 | 15 | 20 | 30 | 50 | 70 | |
| Finished Wire Outer Dia. (mm) | Φ0.20-1.0 | Φ0.3-1.5 | Φ0.5-2.5 | Φ0.5-2.5 | Φ0.5-6 | Φ0.5-8 | |
| Pay-off | Active / tension pay-off | ||||||
| Vacuum Device | Pneumatic vacuum generator | Vacuum pump | |||||
| Capstan Dia. (mm) | Φ200 | Φ200 | Φ300 | Φ300 | Φ400 | Φ500 | |
| Capstan Power (kW) | 2.2 | 2.2 | 2.2 | 3.7 | 3.7 | 5.5 | |
| Accumulator Type | Vertical / horizontal | ||||||
| Take-up Type | Axial loading / rolling | ||||||
Customer Feedback:
Customer:
