Description:

Suitable for described properties,PE,PVC,PU,such as plastic wire about cars,high-speed extrusion insulation.

Specifications:

Machine Type	Ф65 + Ф35	Ф70 + Ф40	Ф80 + Ф40
Screw Diameter	Ф65mm	Ф70mm	Ф80mm
L/D Ratio	27:1	27:1	26:1
Screw Speed	110rpm	110rpm	100rpm
Extruder Power	22kW	37kW	55kW
Extrusion Capacity	170kg/hr	220kg/hr	300kg/hr
Finished Wire Outer Dia.	Ф 1-7mm	Ф 1-7mm	Ф 1-7mm
Control Mode	Industrial computer + PLC
Line Speed	700m/min (max)	800m/min (max)		1000m/min (max)
Pay-off	Lut barrel pay-off	Lut barrel pay-off		Lut barrel pay-off
Cooling Type	Enclosed spray	Enclosed spray		Enclosed spray
Capstan Type	Double wheel sealed	Double wheel sealed		Double wheel sealed
Accumulator	Precision horizontal / 18m	Precision horizontal / 20m
Take-up	Automatic coiling machine			NPS take-up machine
Diameter measuring instrument	Domestic or imported
High-frequency spark tester	Domestic or imported
Wire diameter control precision	±0.02mm

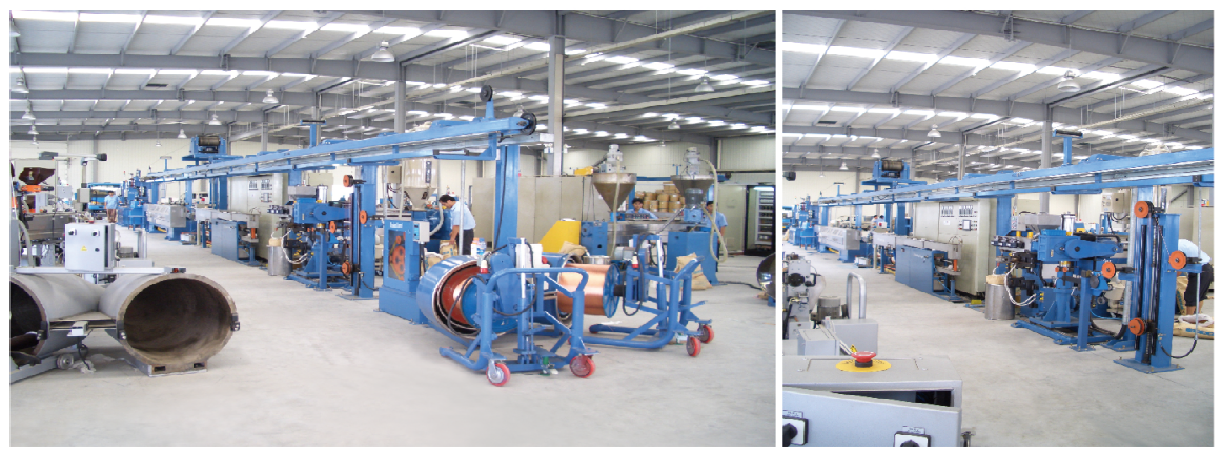

Equipments of the Prodcution Line:

No.	Item	Quantity (set)
1	630 barrel pay-off	2
2	330 tension unit	1
3	Pre-heater machine	1
4	Ф40 extruder	2
5	Ф70 extruder	1
6	Automatic color changing cross head	1
7	Color mixing machine	2
8	Drying hopper + material loading machine	2
9	Diameter measuring instrument	1
10	1.8-meter cooling water tank	1
11	High speed printing machine	1
12	8-meter cooling water tank	1
13	330 capstan	1
14	Diameter measuring instrument	1
15	Spark testing machine	1
16	Automatic double head coiling machine	1
17	Auto binding machine (4 ring)	1
18	Coiler transmission unit	1
19	630 automatic changing take-up	1
20	Electrical control system	1

Main Electric Equipment:

AC controller : Mitsubishi
Touch screen: Siemens
Temperature controller: Japanese RKC
PLC : SIEMENS S7
Low-voltage electrical component: Schneider
Bearing: NSK

Operation direction:
According to customer requirements. The color of machine is at the user’s request.
The user provides the reel drawings .
